SEPP

SEPP definition - computer

(Single Edge Processor Package) A CPU module from Intel that held Celeron chips and their L2 cache chips. The SEPP, which plugged into Slot 1 on the motherboard, was the bare printed circuit board. For the Pentium II and Pentium III chips, the board was encased in a metal housing and became the single edge contact cartridge (SECC). See Slot 1 and SECC.




Single Edge Processor Package

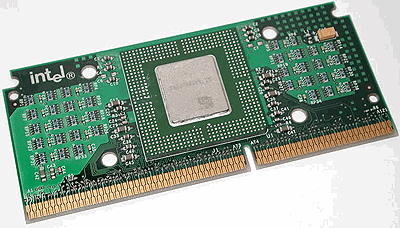

In the late 1990s, the SEPP was a small, 242-pin printed circuit board that held the Celeron CPU and L2 cache chips. This was when the Pentium II and Pentium III chips were the high-priced models. (Image courtesy of Gennadiy Shvets, www.cpu-world.com)






Computer Desktop Encyclopedia THIS DEFINITION IS FOR PERSONAL USE ONLY
All other reproduction is strictly prohibited without permission from the publisher.
Copyright © 1981-2009 by Computer Language Company Inc. All rights reserved.
