SECC

SECC definition - computer

(Single Edge Contact Cartridge) A CPU module from Intel that held Pentium II and Pentium III chips and their L2 cache chips. The SECC plugged into Slot 1 on the motherboard and contained a single edge processor package (SEPP), which was the printed circuit board used for Celeron chips without the cartridge housing (see SEPP).

SECC and SECC2
Introduced in the late 1990s, the Pentium II used the SECC, while the Pentium III used the subsequent SECC2 with a slightly different casing. Both types were 242-pin cartridges. See Slot 1.




Single Edge Contact Cartridge

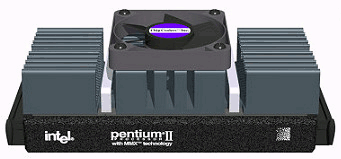

Shown in conjunction with a fan and heat sink from the thermal solutions division of Tyco Electronics, the Pentium II CPU chip and L2 cache were contained in an SECC. (Image courtesy of Tyco International, Ltd., www.tycoelectronics.com)






Computer Desktop Encyclopedia THIS DEFINITION IS FOR PERSONAL USE ONLY
All other reproduction is strictly prohibited without permission from the publisher.
Copyright © 1981-2009 by Computer Language Company Inc. All rights reserved.
