QFP

QFP definition - computer

(Quad FlatPack) A square, surface mount chip package that has leads on all four sides and comes in several varieties. PQFP (Plastic QFP) may refer to all of the following QFP types. All quad flatpacks use gull-wing leads, except for the CQFP, which stick straight out. See flatpack, gull-wing lead and chip package.

    Plastic
    MQFP   Metric QFP (most popular)
    FQFP   Fine pitch QFP
    BQFP   Bumpered QFP
    LQFP   Low-profile QFP
    TQFP   Thin-profile QFP
    SQFP   Shrink QFP (same as MQFP)

    Ceramic
    CQFP   Ceramic QFP

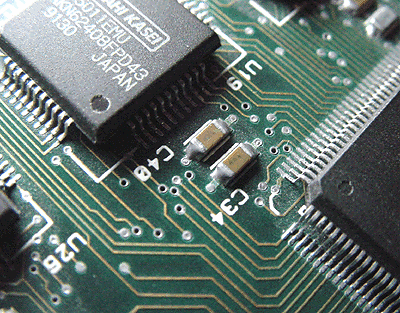

Quad Flatpack

QFPs come in a variety of sizes and types. Notice the gull-wing leads on both of these chips.
