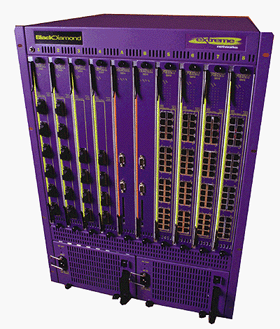

A network device that forwards traffic based on layer 3 information at very high speeds. Traditionally, routers, which inspect layer 3, were considerably slower than layer 2 switches. In order to increase routing speeds, many "cut-through" techniques were used, which perform an "inspect the first packet at layer 3 and send the rest at layer 2" type of processing. Ipsilon's IP Switch and Cabletron's SecureFast switches were pioneers in cut-through switching.

From Software to Hardware
As more routing lookup functions were moved from software into the ASIC chips, layer 3 switches could inspect each packet just like a router at high speed without using proprietary cut-through methods. If a layer 3 switch supports packet-by-packet inspection and supports routing protocols, it is called a "routing switch" or "switch router," which simply means "fast router." For example, Cisco calls its high-end routers Gigabit Switch Routers.

More Inspection Takes Time
The more deeply a packet is examined, the more forwarding decisions can be made based upon type of traffic, quality of service (QoS) and so on. To obtain this information requires digging into the packet's headers to ferret out the data, which takes processing time. To understand how packets are formed, see TCP/IP abc's. The following shows which data are examined at each layer. See layer 3, layer 2 switch, Web switch and virtual LAN.

        Forwarding
        Decision
  Layer Based on         Examples

   2    MAC address      Ethernet, Token Ring, etc.

   3    Network address  IP, IPX, etc.
   3    Service quality  IP, IPX, etc.

   3    Application      IPX socket

   4    Application      IP socket
