HMI

HMI definition - computer

(Human Machine Interface) The user interface in a manufacturing or process control system. It provides a graphics-based visualization of an industrial control and monitoring system. Previously called an "MMI" (man machine interface), an HMI typically resides in an office-based Windows computer that communicates with a specialized computer (DCS, PLC or PAC) in the plant. Contrast with OI. See DCS, PLC, PAC, GUI and user interface.




In the Office

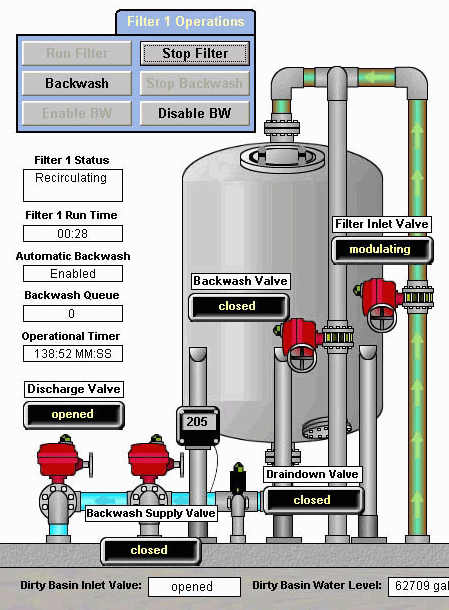

Typically located in an office, an HMI offers the same rendering capability found in today's graphical user interfaces. Designed by RCK Controls, this is a partial screen shot of an HMI used in the recovery filter operation at the Georgia Aquarium in Atlanta. (Image courtesy of Opto 22, www.opto22.com)
