chip on board

chip on board definition - computer

A bare chip that is mounted directly onto the printed circuit board (PCB). After the wires are attached, a glob of epoxy or plastic is used to cover the chip and its connections. The tape automated bonding (TAB) process is used to place the chip on the board. See tape automated bonding.




Chip On Board

The bare chip is adhered and wire bonded to the board, and an epoxy is poured over it to insulate and protect it. For illustrative purposes only, this picture shows a clear epoxy. (Image courtesy of Joseph Fjelstad.)

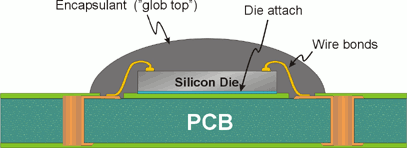

Side View

This side view shows how the wires connect the chip to the printed circuit board (PCB). (Image courtesy of Joseph Fjelstad.)
